LED Materials

To Upgrade LED Industry by Providing Superior Materials.

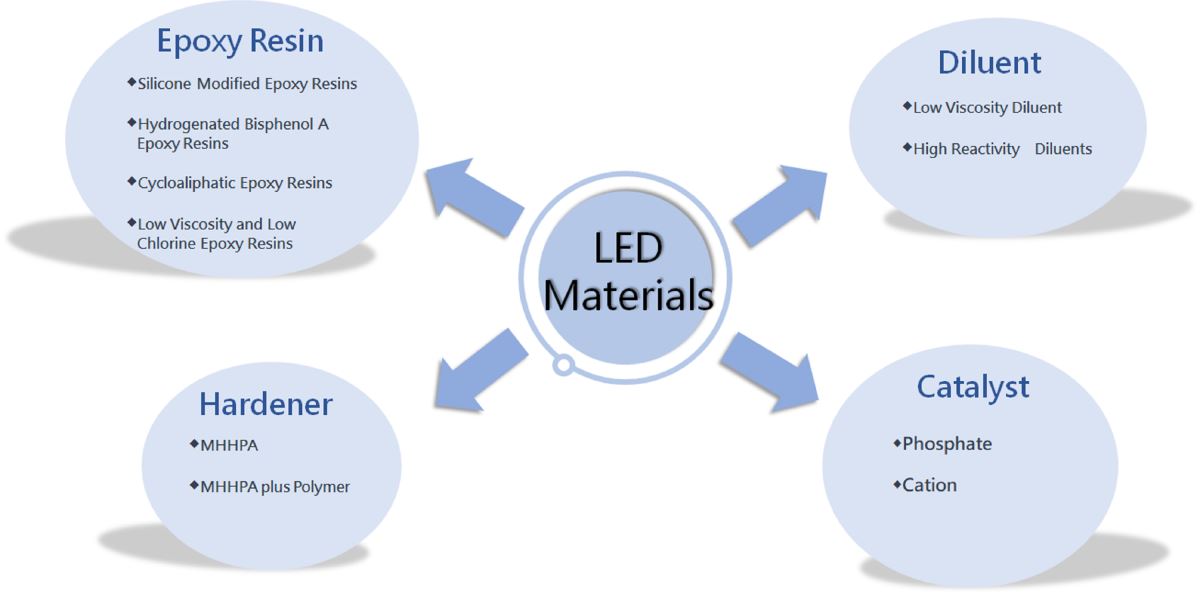

To meet the trend of the LED industry, we are importing LED materials, including epoxy resins, hardeners, catalysts and so forth. These products are characterized by their superior heat and UV resistance, gas barrier, and adhesion. They can replace silica gel and become brand new encapsulant materials.

Epoxy Resins

Items	Classifications	Color (APHA)	Epoxy Equivalent (g/eq)	Viscosity (mPa‧s/25℃)	Specific Gravity (25℃)	Characteristics
1	Silicone Modified Epoxy Resins	<20	200	3,000	1.08	One-component High barrier
2	Silicone Modified Epoxy Resins	<50	180	11,000	1.2	One-component High barrier
3	Hydrogenated Bisphenol A Epoxy Resins	<20	210	2,000	1.1	Encapsulant Good adhesive
4	Cycloaliphatic Epoxy Resins	<50	130	250	1.17	UV or heat
5	Low Viscosity Epoxy Resins	<50	170	2,300	1.17	Low chlorine, No crystallization

Diluents

Items	Classifications	Appearance	Epoxy Equivalent (g/eq)	Viscosity (mPa‧s/25℃)	Characteristics
1	Mono-functional Type	Transparent liquid	186	5	Low viscosity
2	Di-functional Type	Transparent liquid	102	8	High reactivity

Hardeners

Items	Classifications	Appearance	Viscosity (mPa‧s/25℃)	Characteristics
1	MHHPA	Transparent liquid	60	Low viscosity, High transparency
2	MHHPA plus Polymer	Transparent liquid	200,000	High TG,Flexibility

Catalyst

Items	Classifications	Appearance	Viscosity (mPa‧s/25℃)	Characteristics
1	5195	Powder	-	High stability
2	5190	Liquid	2,500	Low yellowing, Heat cycle test
3	5185	Liquid	5,500	Good adhesive, Yellowing Resistance
4	CW-80	Liquid/Powder	-	Cation curing
